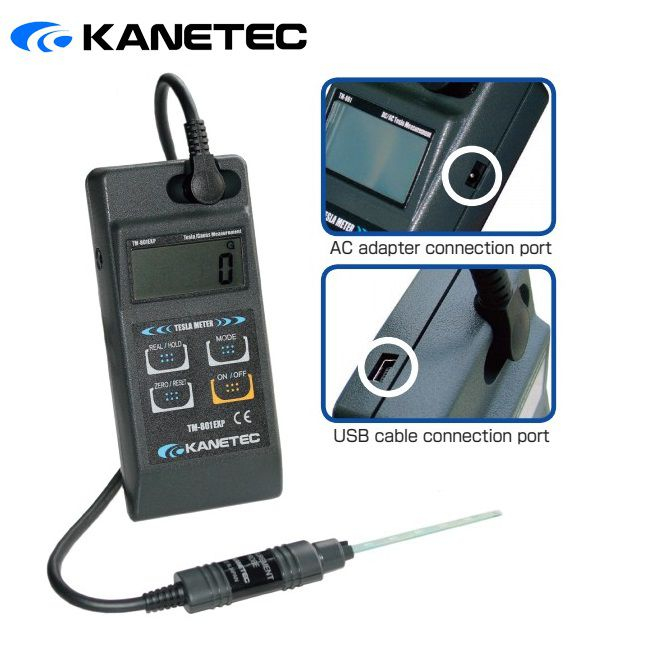

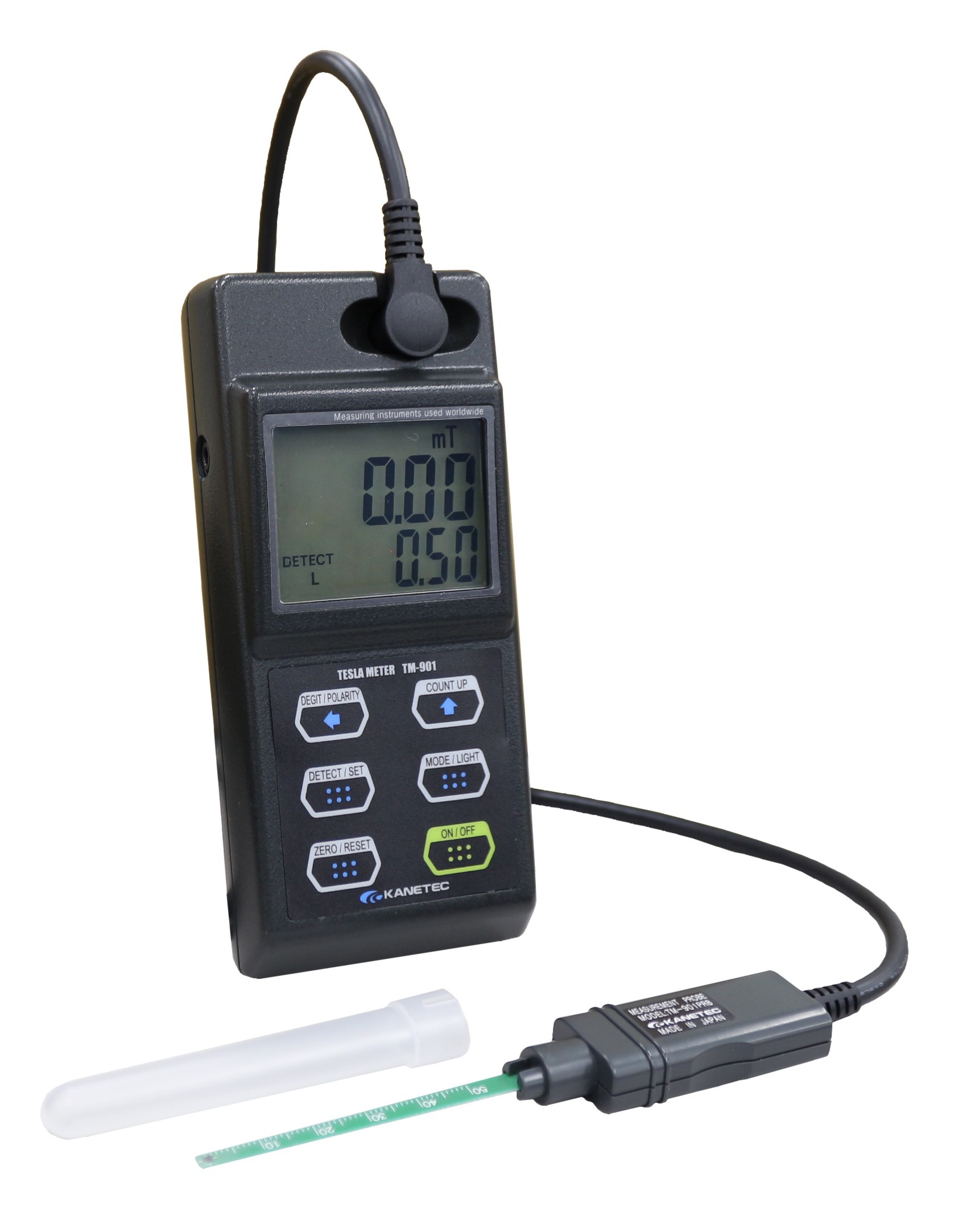

TESLA METER: MÁY ĐO TỪ TÍNH
- MODEL TM-901 EXP là model nâng cấp của TM-701 EXP và TM-901 EXP
TM-901EXP output:USB Type-C
Application- Residual magnetic measurement of machined workpieces, demagenetized things and press-formed products.
- Magnetic flux density control of sanitary magnets
- Measurement of the characteristics or magnetic materials
- Confirmation of magnetization level of magnetic materials
- Magnetic flux density measurement of magnetic tools
- Inspection and development of AC magnetic applied products, etc.
Features- Measurement range is 0-3000.0mT[0-30000G](DC).
- "REAL" and "PEAK HOLD" values of magnetic flux density are displayed at the same time.
- The new monitor comes with a light it can be tuned ON and OFF manually.

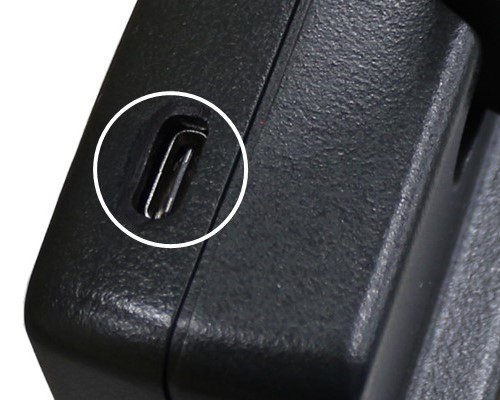

- USB cable connection port for digital output is Type C.
- "Detection Mode":The magnetic flux density measurements range can be set by user.
And it has a buzzing sound when in range.
*Buzzing sound is for DC only. AC is not supported. - TM-901PRB and TM-901AXL can be used with conventional models such as TM-501,TM-601,TM-701,TM-801.
| Model | TM-901 EXP |
| Object to detect | DC magnetic flux density AC magnetic flux density
Polarities (N,S) 40-500Hz |
| Unit of measurement | mT/G selection |
| Measurement range | 0-3000.0mT |
| | Measjrement moede | Measuring range | Resolution | Indication accuracy |
| Measurement mode | DC x 1 | 0-2000.0mT | 0.1 mT | ±(5% of rdg. + 3digit) |
| Measuring range | 200.1-3000.0mT | 1 mT | ±(5% of rdg. + 10digit) |
| Resolution | DC x 10 | 0-3000.0mT | 0.01 mT | ±(3% of rdg. + 5digit) |
| indication accuracy | AC* | 0-150.0mT | 0.01 mT | ±(5% of rdg. + 20digit) |
| | 150.1-300.0mT | 0.1 mT |
| 300.1-1500.0mT | 1 mT |
| Function | Zero reset | Polarity judgment |
| Max. detect value hold | Auto power off(Cancellable) |
| Output | Digital output(USB)/Analog output |
| Indication | Detected value | Digital |
| Polarity | Alohabets (N/S) |
| Operation temperature | 0±40℃ (104°F) |
| Power source | .Battery:Size AA (1.5V)x4poeces |
| .External power source 5-6 VDC (AC adapter/USB feed) |
| Dimensions | 143(5.62in)mm high x64(2.51in)mm wide x30(1.41in)mm thick |
| Mass | Approx. 250g(0.62lb) (batteries Á probe included) |
| Accessories | Probe, batteries, carrying case |
| Optional | Axial probe (TM-801 AXL) |
| Reference magnetic field (TM-SMF,TM-AMF) |
