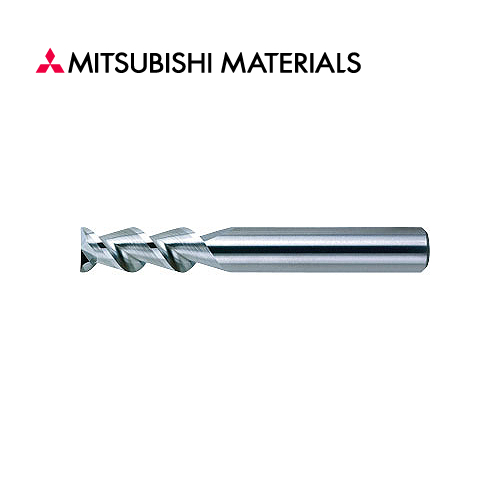

CARBIDE End Mills: Dao phay hợp kim

Shape	Series	Geometry	Cutter Body Type	Feature	Type
	C2LA	Square (Centre Cutting)	Long	High efficiency machining for aluminium alloys.	Solid Carbide
	C2MA	Square (Centre Cutting)	Medium	High efficiency machining for aluminium alloys.	Solid Carbide
	C2MHA	Square (Centre Cutting)	Medium	High efficiency machining for aluminium alloys.	Solid Carbide
	C2SA	Square (Centre Cutting)	Short	High efficiency machining for aluminium alloys.	Solid Carbide
	C3SA	Square (Centre Cutting)	Short	High efficiency machining for aluminium alloys.	Solid Carbide
	C3SARB	Radius Type	Short	High efficiency machining of aluminium alloy.	Solid Carbide
	C4LATB	Taper Ball Type	Long	High-efficiency roughing for aluminum impellers.	Solid Carbide
	CBN2XLB	Ball Nose Type	Long Neck	Solid CBN ball nose. A wide variation of neck lengths available.	Solid Carbide
	CBN2XLRB	Radius Type	Long Neck	CBN long neck radius end mill. A wide variation of neck lengths available.	Solid Carbide
	CMRA	Square (Centre Cutting)	Medium	End mill for roughing aluminium alloy.	Solid Carbide
	CRN2MB	Ball Nose Type	Medium	2 flute ball nose end mill with CRN coating for copper electrode machining.	Solid Carbide
	CRN2MRB	Radius Type	Medium	2 flute corner radius end mill with CRN coating for copper electrode machining.	Solid Carbide
	CRN2MS	Square (Centre Cutting)	Medium	2 flute end mill with CRN coating for copper electrode machining.	Solid Carbide
	CRN2XL	Square (Centre Cutting)	Long Neck	2 flute long neck end mill with CRN coating for copper electrode machining.	Solid Carbide
	CRN2XLB	Ball Nose Type	Long Neck	2 flute long neck ball nose end mill with CRN coating for copper electrode machining.	Solid Carbide
	CRN2XLRB	Radius Type	Long Neck	2 flute long neck corner radius end mill with CRN coating for copper electrode machining.	Solid Carbide
	CRN4JC	Square (Centre Cutting)	Semi Long	4 flute end mill with CRN coating for copper electrode machining.	Solid Carbide
	CSRA	Square (Centre Cutting)	Short	End mill for roughing aluminium alloy.	Solid Carbide
	CSRARB	Radius Type	Short	End mill for roughing aluminium alloy.	Solid Carbide
	DC2SB	Ball Nose Type	Short	DC ball nose end mill for carbide and other hard brittle materials.	Solid Carbide
	DC2XLB	Ball Nose Type	Long Neck	DC long neck ball nose end mill for carbide and other hard brittle materials.	Solid Carbide
	DF2MB	Ball Nose Type	Medium	2 flute ball nose end mill with original diamond coating for graphite machining.	Solid Carbide
	DF2XLB	Ball Nose Type	Long Neck	2 flute long neck ball nose end mill with original diamond coating for graphite machining.	Solid Carbide
	DF2XLBF	Ball Nose Type	Long Neck	Diamond coated long-neck ball end mills are ideal for excellent surface finishes on non-ferrous materials.	Solid Carbide
	DF3XB	Ball Nose Type	Taper Neck	3 flute taper neck ball nose end mill with original diamond coating for graphite machining.	Solid Carbide
	DF4JC	Square (Centre Cutting)	Semi Long	4 flute end mill with original diamond coating for graphite machining.	Solid Carbide
	DF4XL	Square (Centre Cutting)	Long Neck	4 flute long neck end mill with original diamond coating for graphite machining.	Solid Carbide
	DFC4JC	Square (Centre Cutting)	Semi Long	4 flute end mill with CVD diamond coating for CFRP machining.	Solid Carbide
	DFCJRT	Square (Centre Cutting)	Semi Long	Cross-nick type end mill with original CVD diamond coating for CFRP machining.	Solid Carbide
	DFPSRB	Radius Type	Short	±0.01mm corner radius tolerance, 0 - -0.02mm outer diameter tolerance.	Solid Carbide
				Corner radius end mill with original diamond coating for precise and efficient graphite machining.
	DLC2MA	Square (Centre Cutting)	Medium	2 flute end mill with new high welding resistance DLC coating, ideal for machining nonferrous materials.	Solid Carbide
	DLC2MB	Ball Nose Type	Medium	2 flute ball nose end mill with new high welding resistance DLC coating,ideal for machining non-ferrous materials.	Solid Carbide
	MP2MB	Ball Nose Type	Medium	2-flute ball nose end mills with medium cutting edge length for general use. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.	Solid Carbide
	MP2SB	Ball Nose Type	Short	2-flute ball nose end mills with short cutting edge length for general use. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.	Solid Carbide
	MP2SDB	Ball Nose Type	Short	Excellent chipping resistance with a strong S curve cutting edge.	Solid Carbide
				Ideal for semi finish machining of forging dies.
	MP2SSB	Ball Nose Type	Short	2-flute ball nose end mills with short cutting edge length for general use. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.	Solid Carbide
	MP2XLB	Ball Nose Type	Long Neck	2-flute long neck ball nose end mills. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.	Solid Carbide
	MP3XB	Ball Nose Type	Taper Neck	3 flute long neck ball nose end mill.	Solid Carbide
	MPJHV	Square (Centre Cutting)	Semi Long	4 flute irregular helix end mill for reduced vibration when machining stainless and carbon steel.	Solid Carbide
			Medium	Semi long flute length suitable for vertical wall finishing.
	MPMHV	Square (Centre Cutting)	Medium	Impact Miracle end mill with irregular helix flutes ensures stable machining of difficult-to-cut materials and with long overhangs.	Solid Carbide
	MPMHVRB	Radius Type	Medium	VQ vibration control end mills for reduced chattering, a stable performance on difficult-to-cut materials and long overhang applications.	Solid Carbide
	MPXLRB	Radius Type	Long Neck	2-4 flute irregular helix end mill with corner radius for reduced vibration when machining stainless and carbon steels.	Solid Carbide
	MS2ES	Square (Centre Cutting)	Extra Short	2 flute end mill.	Solid Carbide

Công ty TNHH Thiết Bị Công Nghiệp T&T Việt Nam rất hân hạnh mang đến cho Quý khách những sản phẩm chất lượng, giá tốt từ thương hiệu MITSUBISHI MATERIALS. Liên hệ ngay với chúng tôi để nhận được sự tư vấn sản phẩm và báo giá tốt nhất.
