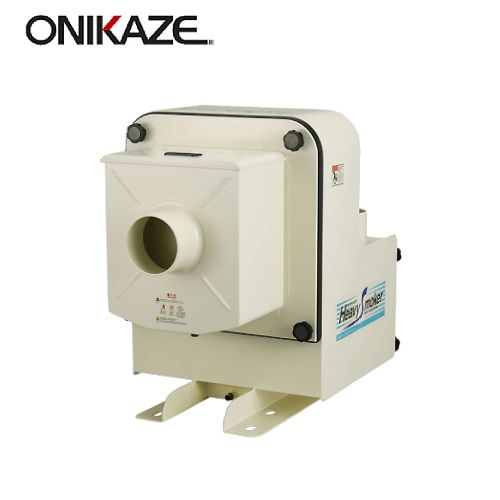

FEATURE:
Compatible with both water-soluble and oil-based mist
Proprietary filter structure collects mist in stages.
He collects up to 99.93% of the industry's highest class, 0.3 micron mist particles, and
corresponds to oil smoke level.
It almost certainly collects everything from coarse mist to fine particles.Easy maintenance without tools
The filter can be attached and detached in a short time without using tools.
SPECIFICTION:
format HVS-40 HVS-100 HVS-150 HVS-220 HVS-300 HVS-2500 power supply HVS-40 200/200/220/230V 50/60/60/60Hz
HVS-100~2500 200/200/220V 50/60/60HzProcessing air volume (m 3 /min) 4/4.8 9/11 14.2/17 22/26 23.5/28 27.5/33 Static pressure (Pa) 690/980 1030/1470 1520/2150 1570/2450 1680/2350 1720/2450 collection efficiency Removes 99.93% of particles larger than 0.3 microns Electric motor 0.4kW 2Pole 0.75kW 2Pole 1.5kW 2Pole 2.2kW 2Pole 2.2kW 2Pole 2.2kW 2Pole Paint color 25-90C Munsell
5Y9/1.5 Approximate
polyester powder coatingExternal dimensions (W×D×H) 340×696×520 470×776×655 520×866×735 600×936×830 600×1008×980 750×1232×1270 Intake diameter 98 one two three 148 198 198 198 Discharge port diameter - one two three 148 198 198 198 Noise (dB(A)) 50/54 58/62 62/68 68/71 61/64 62/64 Mass (kg) 35 55 72 85 108 180
Công ty TNHH Thiết Bị Công Nghiệp T&T Việt Nam rất hân hạnh mang đến cho quý khách những sản phẩm chất lượng, giá tốt từ thương hiệu AKAMATSU. liên hệ ngay với chúng tôi để nhận được sự tư vấn sản phẩm và báo giá tốt nhất.
