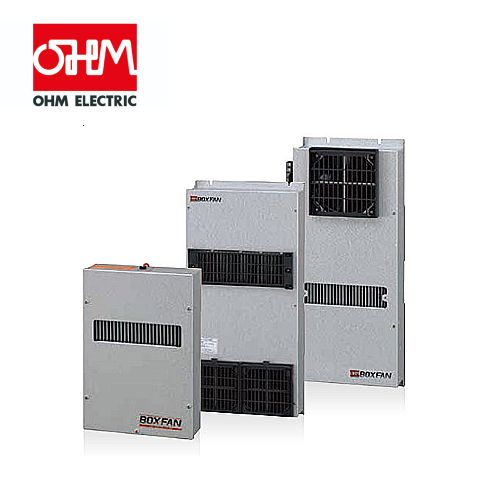

PANEL COOLER: MÁY / THIẾT BỊ LÀM MÁT TỦ ĐIỆN
- Giúp tủ điện điều khiển của máy luôn hoạt động trong điều kiện nhiệt độ ổn định, không bị quá nhiệt
- tránh bụi bẩn, hơi dầu đi vào tủ điều khiển
- Giúp gia tăng tuổi thọ các chi tiết bên trong tủ điện và giúp máy hoạt động liên tục, bền bỉ hơn.
1)Non-fluorocarbon Series Standard type Lateral mounting - Wide range

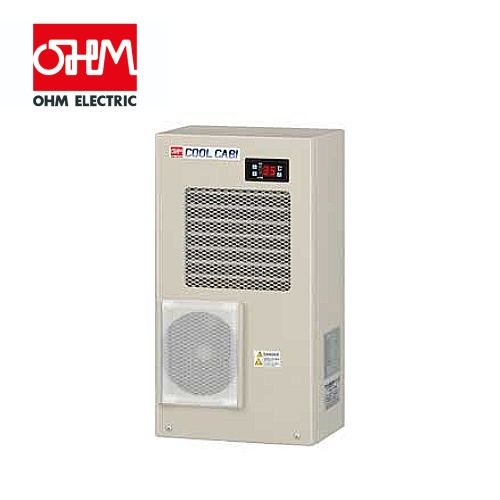

LOẠI CÓ SỬ DỤNG MÔI CHẤT R1234yf - LẮP BÊN THÀNH TỦ ĐIỆN: COOLCABI
| Model | OCA- H300BC-AW2 | OCA- H600BC-AW2 | OCA- H1000BC-AW2 | OCA- H1600BC-AW2 | OCA- H2200BC-AW2 | OCA- H2900BC-AW2 | |
| Type of mounting | Lateral mounting | ||||||
| Cooling capacity *1 | 250/300W | 500/610W | 800/1000W | 1450/1600W | 2000/2200W | 2600/2900W | |
| Rated voltage（50/60Hz） *2 | Single phase 200 to 240VAC | ||||||
| Rated current consumption*3 | 200V | 1.2/1.5A | 2.1/2.7A | 2.9/3.7A | 3.4/4.4A | 5.0/5.3A | 6.6/7.8A |
| 220V | 1.3/1.5A | 2.3/2.7A | 3.1/3.7A | 3.4/4.5A | 5.8/5.1A | 6.7/7.4A | |
| 240V | 1.5/1.5A | 2.8/2.7A | 3.5/3.6A | 3.4/4.5A | 7.4/5.1A | 7.4/7.1A | |
| Max. current consumption*3 | 1.6/1.7A | 3.0/3.0A | 4.0/4.3A | 4.2/5.2A | 8.0/6.8A | 9.1/10.8A | |
| Starting current | 4.9/4.6A | 10.3/10.1A | 14.5/13.8A | 20.7/19.1A | 33.3/31.4A | 38.1/34.1A | |
| Rated power consumption *3 | 200V | 230/270W | 410/440W | 570/690W | 660/800W | 930/1050W | 1290/1540W |
| 220V | 260/310W | 490/490W | 650/760W | 720/860W | 1070/1110W | 1380/1590W | |
| 240V | 320/340W | 620/550W | 750/840W | 790/930W | 1300/1210W | 1550/1670W | |
| Max. power consumption *3 | 350/380W | 690/630W | 890/970W | 950/1170W | 1530/1480W | 1970/2190W | |
| Working temperature *3 | ＋20 to ＋50℃ | ||||||
| Working humidity | Not exceeding 85％RH, free from condensation | ||||||
| Noise | 63dB (A) | 64dB(A) | 65dB(A) | 66dB(A) | 66dB(A) | 66dB(A) | |
| Temp. setting range *3 | ＋30 to＋45℃ （Default +35℃） | ||||||
| Display | Internal temperature/Alarm code/Operation lamp (Green)/Alarm lamp (Red) | ||||||
| Function | Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection, Maintenance reminder, Forced cooling operation for inspection | ||||||
| Alarm output | No-voltage contact output 1a x 2 (COMMON) 250VAC 2A 30VDC 2A | ||||||
| Communication function | RS485 2-wire system (Modbus RTU) | ||||||
| Vibration withstand | Vibration frequency10 to 55Hz, Amplitude 0.15mm, Sweep cycle 10 times | ||||||
| Protection category *4 | Internal circuit IP54 equivalent | ||||||
| Conformity to standards | EMC Directiv | EN61000-6-4, EN61000-6-2 | |||||
| Low Voltage Directive | EN60335-1, EN60335-2-40 | ||||||
| UL standard | UL60335-1, UL60335-2-40 | ||||||
| CCC standard | GB4706.1, GB4706.32, GB4343.1, GB17625.1 | ||||||
| Environment | RoHS2 | ||||||
| Refrigerant | R1234yf （130g） | R1234yf （280g） | R1234yf （500g） | R1234yf （780g） | R1234yf （1000g） | R1234yf （1100g） | |
| GWP *5 | ＜1 | ||||||
| Color | Powder coating N8 corresponding, N4 corresponding | ||||||
| Dimensions（mm）*6 | W300×H500 ×D150 | W300×H550 ×D200 | W350×H900 ×D200 | W390×H950 ×D220 | W450×H1150 ×D220 | W450×H1350 ×D220 | |
| Weight | 16.0kg | 20.0kg | 33.0kg | 41.0kg | 50.0kg | 62.0kg | |
2) Non-fluorocarbon Series Standard type Roof mounting - Wide Range
LOẠI CÓ SỬ DỤNG MÔI CHẤT R1234yf - LẮP TRÊN NÓC TỦ ĐIỆN
| Model | OCA- H300AC-AW2 | OCA- H700AC-AW2 | OCA- H1100AC-AW2 | OCA- H1700AC-AW2 | OCA- H2300AC-AW2 | OCA- H3000AC-AW2 | |
| Type of mounting | Roof mounting | ||||||
| Cooling capacity *1 | 300/350W | 600/700W | 950/1100W | 1550/1700W | 2100/2300W | 2700/3000W | |
| Rated voltage（50/60Hz） *2 | Single phase 200 to 240VAC | ||||||
| Rated current consumption*3 | 200V | 1.1/1.4A | 2.0/2.7A | 3.0/3.7A | 3.4/4.5A | 5.1/5.5A | 6.3/7.4A |
| 220V | 1.1/1.4A | 2.2/2.7A | 3.2/3.7A | 3.4/4.5A | 5.8/5.3A | 6.5/7.1A | |
| 240V | 1.3/1.4A | 2.7/2.6A | 3.6/3.6A | 3.4/4.6A | 7.4/5.2A | 7.3/6.9A | |
| Max. current consumption*3 | 1.5/1.6A | 2.9/3.1A | 4.0/4.4A | 4.3/5.4A | 8.0/7.0A | 8.7/9.7A | |
| Starting current | 4.6/4.6A | 10.7/10.4A | 14.5/13.6A | 21.2/19.5A | 35.5/32.1A | 37.7/36.3A | |
| Rated power consumption *3 | 200V | 210/260W | 390/440W | 580/700W | 660/820W | 950/1080W | 1250/1460W |
| 220V | 240/280W | 470/470W | 660/770W | 720/870W | 1080/1150W | 1360/1530W | |
| 240V | 280/310W | 610/530W | 760/840W | 790/950W | 1310/1230W | 1520/1630W | |
| Max. power consumption *3 | 330/360W | 680/630W | 880/980W | 980/1160W | 1560/1520W | 1850/2080W | |
| Working temperature *3 | ＋20 to +50℃ | ||||||
| Working humidity | Not exceeding 85%RH, free from condensation | ||||||
| Noise | 61dB(A) | 60dB(A) | 63dB(A) | 64dB(A) | 65dB(A) | 64dB(A) | |
| Temp. setting range *3 | ＋30 to ＋45℃ （Default +35℃） | ||||||
| Display | Internal temperature/Alarm code/Operation lamp (Green)/Alarm lamp (Red) | ||||||
| Function | Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection, Maintenance reminder Forced cooling operation for inspection, Detection of drain overflows, Detection of evaporator ice-up | ||||||
| Alarm output | No-voltage contact output 1a x 2 (COMMON) 250VAC 2A 30VDC 2A | ||||||
| Communication function | RS485 2-wire system (Modbus RTU) | ||||||
| Vibration withstand | Vibration frequency 10 to 55Hz, Amplitude 0.15mm, Sweep cycle 10 times | ||||||
| Protection category *4 | Internal circuit IP54 equivalent | ||||||
| Conformity to standards | EMC Directiv | EN61000-6-4, EN61000-6-2 | |||||
| Low Voltage Directive | EN60335-1, EN60335-2-40 | ||||||
| UL standard | UL60335-1, UL60335-2-40 | ||||||
| CCC standard | GB4706.1, GB4706.32, GB4343.1, GB17625.1 | ||||||
| Environment | RoHS2 | ||||||
| Refrigerant | R1234yf （140g） | R1234yf （240g） | R1234yf （400g） | R1234yf （650g） | R1234yf （700g） | R1234yf （1100g） | |
| GWP *5 | ＜1 | ||||||
| Color | Powder coating N8 corresponding, N4 corresponding | ||||||
| Dimensions（mm）*6 | W454×H230 ×D252 | W551×H330 ×D272 | W603×H349 ×D354 | W596×H446 ×D352 | W655×H444 ×D402 | W765×H444 ×D402 | |
| Weight | 18.0kg | 26.0kg | 35.0kg | 42.0kg | 49.0kg | 60.0kg | |
3) Standard series Standard type Lateral mounting
LOẠI CÓ SỬ DỤNG MÔI CHẤT R134a - LẮP BÊN THÀNH TỦ ĐIỆN
| Model | OCA-S300BC-A100 | OCA-S600BC-A100 | OCA-S1000BC-A100 | OCA-S1600BC-A100 | |
| Type of mounting | Lateral mounting | ||||
| Cooling capacity *1 | 250/300W | 400/520W | 750/900W | 1300/1450W | |
| Rated voltage（50/60Hz） | Single phase 100VAC | Single phase 100VAC | Single phase 100VAC | Single phase 100VAC | |
| Current consumption *2 | Rated | 3.1/2.6A | 4.1/3.9A | 7.8/8.1A | 8.9/9.2A |
| Max. | 3.3/3.1A | 5.1/5.3A | 10.5/9.8A | 11.2/11.4A | |
| Starting current | 7.0/6.7A | 11.8/10.6A | 24.3/20.2A | 26.2/23.8A | |
| Power consumption *2 | Rated | 265/250W | 365/385W | 665/770W | 805/890W |
| Max. | 310/300W | 475/530W | 1065/995W | 1200/1135W | |
| Comp. motor output | 100W | 250W | 400W | 470W | |
| Working temperature *3 | ＋20 to ＋50℃ | ||||
| Working humidity | Not exceeding 85％RH, free from condensation | ||||
| Noise（Charactristic A） | 65dB(A) | 65dB(A) | 65dB(A) | 68dB(A) | |
| Temp. setting range *3 | ＋30 to＋45℃ （Initial setting+35℃） | ||||
| Display | Innter temperature/Alarm code/Operation lamp/Alarm lamp | ||||
| Function | Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection, Maintenance reminder, Forced cooling operation for inspection | ||||
| External output | Alarm output 1a 240V 1.5A×2（COMMON） | ||||
| Vibration withstand | Vibration frequency 10 to 150Hz, Acceleration 1.0G, Sweep cycle 20 times | ||||
| Protection category *4 | Internal circuit IP54 equivalent | ||||
| Conformity to standards | EMC Directive | EN61000-6-2, EN61000-6-4 complaint | |||
| LV directive | EN60335-1, EN60335-2-40, EN62233 | ||||
| Environment | RoHS2 | ||||
| Refrigerant | R134a（140g） | R134a（180g） | R407c（410g） | R407c（510g） | |
| GWP *5 | 1430 | 1770 | |||
| Color | Beige（5Y7/1 corresponding） | ||||
| Dimensions（mm） | W300×H500×D150 | W300×H550×D200 | W350×H900×D200 | W390×H950×D220 | |
| Weight | 16.0kg | 18.0kg | 33.0kg | 36.0kg | |
