OIL MIST COLLECTOR: BỘ HÚT HƠI DẦU - MIST COLLECTOR / MIST CATCH
| Sản phẩm |
| Bộ thu sương dầu dòng "MISTCATCH" |

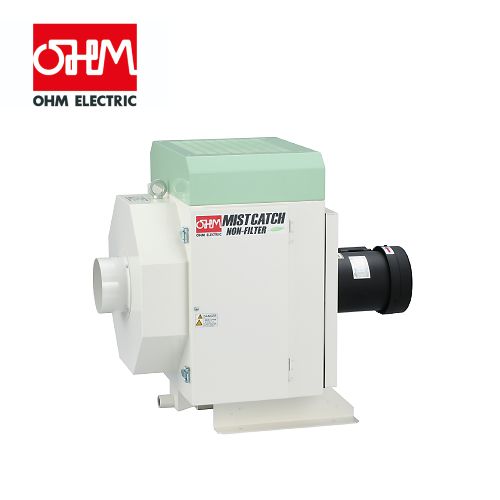

Bộ thu sương dầu không dùng lọc - NON FILTER
- Hiệu quả thu gom cao khi Không có Bộ lọc!
- Loại bỏ việc thay thế bộ lọc và chất thải công nghiệp
| | Model | OMC-
N205 | OMC-
N205H | OMC-
N210 | OMC-
N210H | OMC-
N215 | OMC-
N215H | OMC-
N225 | OMC-
N225H | | Max. air flow *1 | 4.5/5.0m3/min | 8.0/10.0m3/min | 14.5/16.5m3/min | 21.5/24.5m3/min | | Max. static pressure *1 | 0.59/0.85kPa | 1.13/1.55kPa | 1.57/2.17kPa | 1.88/2.57kPa | | Collection efficiency | Min. 99% | | Particle diameter | 2µm or larger | 1µm or larger | 2µm or larger | 1µm or larger | 2µm or larger | 1µm or larger | 2µm or larger | 1µm or larger | | Rated voltage | 3-phase, 200VAC 50Hz/ 200 ‒ 220VAC 60Hz | | Rated motor output | 0.4kW（2P） | 0.75kW（2P） | 1.5kW（2P） | 2.2kW（2P） | | Motor efficiency*2 | 76.0/76.0-77.0％ | 81.5/81.1-82.5%
IE3/IE3-IE3 | 85.8/85.6-86.0%
IE3/IE3-IE3 | 86.0/86.8-86.9%
IE3/IE3-IE3 | | Rated current consumption *1 | 1.9/1.7-1.7A | 4.0/3.9-3.6A | 7.1/7.1-6.4A | 9.5/9.3-8.4A | | Working temperature | 0 to ＋40℃ | | Working humidity | Max. 85%RH, free from condensation | | Noise | 66/70dB(A) | 70/74dB(A) | 72/76dB(A) | 74/78dB(A) | | Max. suction air temp. | ＋80℃ | | Environmental standard | RoHS2 | | Suction port diameter | Ø98mm | Ø123mm | Ø148mm | Ø198mm | | Color | Powder coating : Ivory (10GY9/1 equivalent), Light green (10GY8/4 equivalent) | | Weight | 25.0kg | 40.0kg | 57.0kg | 68.0kg | | Drain port | Ø31 pipe |
|

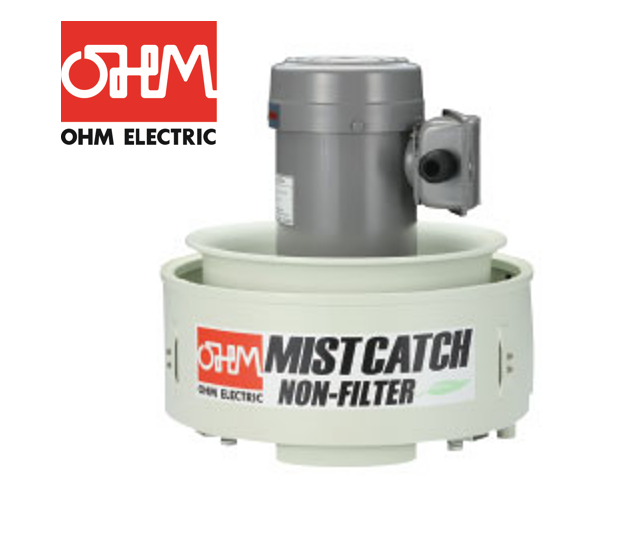

Bộ thu sương dầu không dùng lọc - NON FILTER
- Tiết kiệm năng lượng nhưng công suất cao!
- Được thiết kế nhỏ và trọng lượng nhẹ
| | Model | OMC-11 | | Max. air flow | 8/10m3/min | | Collection efficiency | Min. 83%±5％ | | Particle diameter | 2µm or larger | | Rated voltage (50/60Hz) | 3-phase, 200VAC 50Hz / 200 - 220VAC 60Hz | | Rated motor output | 0.2kW（2P） | | Rated current consumption*1 | 1.0/1.3-1.3A or less | | Working temperature | 0 to ＋40℃ | | Working humidity | Max. 85%RH, Free from condensation | | Noise | 77dB(A) | | Max. suction air temp. | ＋50℃ | | Conformity to standards | Environmental standard | RoHS | | Suction port diameter | Ø123mm | | Color | Ivory (10GY9/1 equivalent) | | Weight | 13.0kg | | Drain port | Ø18 pipe |
|

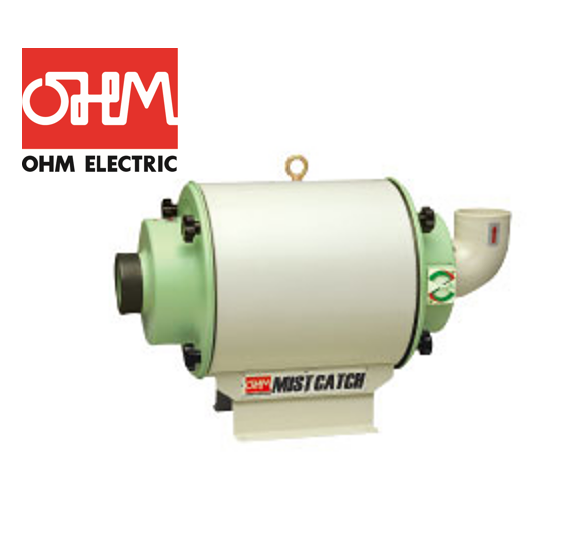

Bộ thu sương dầu tĩnh điện - ELECTROSTATIC
- Khả năng thu thập cao bằng cách ion hóa sương mù!
- Thích hợp cho cả sương mù tan trong nước và dầu
| | Model | OMC-E21 | OMC-E310 | OMC-E315 | OMC-E325 | OMC-E345 | | Max. air flow *1 | 8/10m3/min | 7/8m3/min | 12/14m3/min | 22/25m3/min | 40/45m3/min | | Max. static pressure ※1 | - | 0.68/0.96kPa | 0.86/1.21kPa | | Collection efficiency | Min. 99% (by gravimetric method) | | Type of mist collectable | Oil-based and water-soluble | | Rated voltage | 3-phase, 200 VAC 50/60 Hz | | Rated motor output | 0.2kW (2P) | 0.2kW（2P） | 0.4kW（2P） | 0.75kW（2P） | 1.5kW（2P） | | Motor efficiency*2 | - | 81.5/81.1 IE3/IE3 | 85.8/85.6 IE3/IE3 | | Rated current consumption*1 | 1.7/2.0A or less | 1.3/1.4A or less | 1.7/1.9A or less | 2.5/3.2A or less | 4.2/5.8A or less | | Rated power consumption*1 | - | 240/320W or less | 370/540W or less | 590/900W or less | 1090/1730W or less | | Working temperature | 0 to ＋40℃ | | Working humidity | 10 to 80%RH, free from condensation | | Noise | 75dB(A) | 74dB(A) | 79dB(A) | 72dB(A) | 75dB(A) | | Max. oil mist density | 150mg3/min | 300mg3/min | | Max. suction air temp. | ＋40℃ | | Ozone concentration | Less than 0.04 ppm | | Display | Power (White)
Electrode energization (Orange)
Electrode check (Red) | Power (White)
Operation (Orange)
Alarm (Red) | | External input | - | 24VDC Continuous signal | | External output | Alarm output 1c
250VAC 2A
30VDC 2A | Alarm output 2c
250VAC 2A
30VDC 2A | Alarm output 1a
(250VAC 2A, 30VDC 2A) ×2 | | Safety circuit | High voltage cutoff and motor stop in the event of frequent spark discharges, high voltage short circuit and door open | High voltage cutoff and motor stop in the events of freaquent sparking, high voltage short circuit,
overcurrent, overcurrent on motor, abnormal heating of high voltage power board or door open | | Conformity to standards | Environmental standard | RoHS2 | RoHS | | Suction port diameter | Ø148mm | Ø198mm | Ø200mm at three places | | High voltage output | HV : DC-9kV/-8kV/-7kV LV : DC-6kV/-5kV/-4kV
(switchable) | DC-9kV/-8kV/-7kV
(switchable on operation panel) | | Color | Powder coating, Ivory (10GY9/1 equivalent) and Light green (10GY8/4 equivalent) | | Weight | 44.0kg | 51.0kg | 52.0kg | 108.0kg | 185.0kg | | Drain port | Ø18 pipe | Ø31 pipe |
|
Bộ hút hơi dầu có lọc-FILTER
- Chi phí thấp, hiệu suất cao, tiết kiệm năng lượng.
| | Model | OMC-F105A | OMC-F110A | OMC-F120A | | Max. air flow | 4.2/5m3/min | 8/10m3/min | 18/20m3/min | | Collection efficiency | Min. 99.8% (by gravimetric method) | | Rated voltage | 3-phase, 200VAC 50/60Hz | | Rated motor output | 0.3kW（2P） | 0.4kW（2P） | 1.12kW（2P） | | Rated current consumption ※1 | 1.6/1.6A or less | 2.0/2.0A or less | 4.7/4.5A or less | | Working temperature | 0 to ＋40℃ | | Working humidity | Max. 85%RH, free from condensation | | Noise (at 1m) | 57dB(A) | 63dB(A) | 66dB(A) | | Max. suction air temperature | ＋50℃ | | Environmental standard | RoHS2 | | Suction port diameter | Ø100mm | Ø125mm | Ø150mm | | Weight | 25.0kg | 30.0kg | 50.0kg | | Drain port | Ø19 pipe |
|
Công ty TNHH Thiết Bị Công Nghiệp T&T Việt Nam rất hân hạnh mang đến cho Quý khách những sản phẩm chất lượng, giá tốt từ thương hiệu OHM ELECTRIC. Liên hệ ngay với chúng tôi để nhận được sự tư vấn sản phẩm và báo giá tốt nhất.
