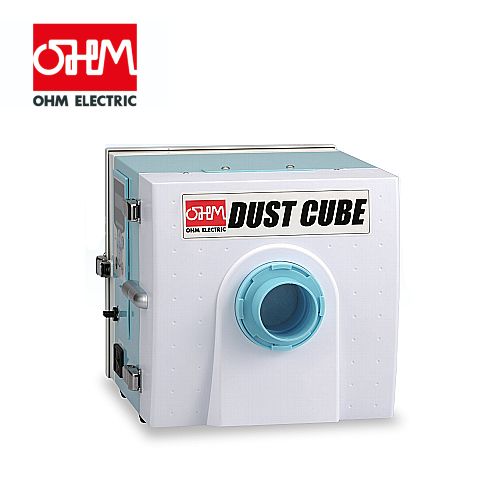

DUST COLLECTOR: CÁC LOẠI MÁY HÚT BỤI TRONG CÔNG NGHIỆP, PHÒNG SẠCH.
- NHÀ SẢN XUÁT: OHM ELECTRIC CO., LTD.
1) For Clean Rooms High volume type ODU-HC:
 | | Model | ODU-080HC-AT3 | ODU-450HC-AT3 | | Max. air volume | 2.9 m3/min | 7.0 m3/min | | Max. static pressure | 2.5 kPa | 2.9 kPa | | Collection efficiency | Min. 99% (for 0.3μm or larger particles) | | Rated voltage (50/60Hz) | Single phase, 100VAC | | Rated current | 2.4 A | 9.8 A | | Working temperature | 0 to ＋40℃ | | Working humidity | Less than 80%RH, free from condensation | | Noise | 58 dB(A) | 65 dB(A) | | Max. intake temperature | ＋40℃ | | Conformity to standard | Environmental standard | RoHS2 | | Weight | 10.3 kg | 29.0 kg |
|
2) For Clean Rooms High pressure type ODU-HP
 | | Model | ODU-080HP-AT3 | ODU-1200HP-AT3 | | Max. air volume | 1.9 m3/min | 5.5 m3/min | | Max. static pressure | 9.3kPa | 13.5 kPa | | Collection efficiency | Min. 99% (for 0.3μm or larger particles) | Min. 99.97% (for 0.3μm or larger particles) | | Rated voltage (50/60Hz) | Single phase, 100VAC | Single phase, 200VAC | | Rated current | 7.6 A | 9.5 A | | Working temperature | 0 to ＋40℃ | | Working humidity | Less than 80%RH, free from condensation | | Noise | 70 dB(A) | 77 dB(A) | | Max. intake temperature | ＋40℃ | | Conformity to standard | Environmental standard | RoHS2 | RoHS | | Weight | 10.0 kg | 26.7 kg |
|
3) For Clean Rooms High pressure type Laser marker use ODU-DSA
 | | Model | ODU-080DSA-AT3 | ODU-1000DSA-AT3 | | Max. air volume ※1 | 1.8 m3/min | 3.2 m3/min | | Max. static pressure | 10.3 kPa | 9.5 kPa | | Collection rate | Min. 99% (for 0.3μm or larger particles) | Min. 99.97% (for 0.3μm or larger particles) | | Rated voltage (50/60Hz) | Single phase, 100VAC | | Rated current | 6.3 A | 7.8 A | | Working temperature | 0 to ＋40℃ | | Working humidity | Less than 80%RH, free from condensation | | Noise | 64 dB(A) | 59 dB(A) | | Max. intake temperature | ＋40℃ | | Conformity to standards | Environmental standard | RoHS2 | | Weight | 22.2 kg | 32.5 kg |
|
4) For General Environments High volume type Laser marker use OSK-ACC
 | | Model | OSK-060ACC-AT3 | | Max. air volume | 2.8 m3/min | | Max. static pressure | 2.5 kPa | | Collection efficiency | Min.99% (for 0.3μm or larger particles) | | Rated voltage (50/60Hz) | Single phase, 100VAC | | Rated current | 2.3 A | | Working temperature | 0 to ＋40℃ | | Working humidity | 80%RH or less, free from condensation | | Noise | 61 dB(A) | | Max. suction air temperature | ＋40℃ | | Conformity to standard | Environmental standard | RoHS2 | | Weight | 15.8 kg |
|
5) For General Environments High volume type OSK-B:
 | | Model | OSK-250-B | OSK-450-B | OSK-750-B | | Max. air volume | 5.5m3/min | 9.5m3/min | 13.0m3/min | | Max. static pressure | 1.85kPa | 2.5kPa | 3.4kPa | | Collection efficiency | Min.99% (for 10μm or larger particles) | | Rated voltage (50/60Hz) | Single phase, 100VAC | Single phase, 200VAC | | Rated current | 6.5 A | 10.0 A | 7.0 A | | Working temperature | 0 to ＋40℃ | | Working humidity | 80%RH or less, free from condensation | | Noise | 67 dB(A) | 67 dB(A) | 64 dB(A) | | Max. intake temperature | ＋40℃ | | Conformity to standard | Environmental standard | RoHS2 | | Weight | 22.3 kg | 37.0 kg | 46.5 kg |
|
6) For General Environments High volume type Laser marker use OSK-DS:
| | Model | OSK-250-DS-B | | Max. air volume | 5.5m3/min | | Max. static pressure | 1.85kPa | | Collection efficiency | Min.99% (for 10μm or larger particles) | | Rated voltage (50/60Hz) | Single phase, 100VAC | | Rated current | 6.5 A | | Working temperature | 0 to ＋40℃ | | Working humidity | 80%RH or less, free from condensation | | Noise | 67 dB(A) | | Max. intake temperature | ＋40℃ | | Conformity to standard | Environmental standard | RoHS2 | | Weight | 22.3 kg |
|
Công ty TNHH Thiết Bị Công Nghiệp T&T Việt Nam rất hân hạnh mang đến cho Quý khách những sản phẩm chất lượng, giá tốt từ thương hiệu OHM ELECTRIC. Liên hệ ngay với chúng tôi để nhận được sự tư vấn sản phẩm và báo giá tốt nhất.
